Uni-Max PRO lubrication system

Uni-Max® Pro

Maximum configurations
Product Support
Overview
Technical
Support

Sample Request

✕

Step 1: Contact Info

Step 2: Sample Type

Step 3: Usage Info

Step 4: Shipping Info

Note: Currently, we can only ship samples to Canada, Mexico, or the United States.

25%

Seamless integration

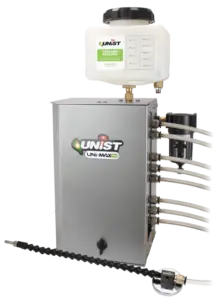

Built for complex applications, the Uni-Max® PRO provides advanced control with support for multiple actuation signals. Each signal can control individual or grouped pumps, allowing the Uni-Max® PRO to provide lubrication for the entire process, with 1 to 12 nozzles.

<p>The Uni-Max® PRO offers advanced control for precision fluid dispensing</p>

Uni-Max® Pro Benefits

Use as little as 2–4 ounces per shift
Use as little as 2–4 ounces per shift
Eliminate manual lubrication
Eliminate manual lubrication
Improve tool life up to 500%
Improve tool life up to 500%
Easily maintain a clean work environment
Easily maintain a clean work environment
Keep operators happy with skin-friendly Coolube® lubricant
Keep operators happy with skin-friendly Coolube® lubricant
Pumps are warrantied for life when used exclusively with Coolube®
Pumps are warrantied for life when used exclusively with Coolube®

Typical Applications

Features

230 micropumps use positive displacement for maximum consistency

Reliable postive displacement

Adjustable or fixed 20μL, 40μL, or 60μL pumps deliver consistent output, with adjustable stroke and air volume control

push to connect coaxial tubing

Quick connect tubing

Changing nozzles has never been easier

Prevents airlock in the pump.

Self-priming

For hassle-free start-up, pumps draw fluid even if air is present

Leak-free pump maintenance

Fluid shut-off valve

Allows for leak-free pump replacement

Lifetime pump warranty for Unist mql systems

Coolube® Lifetime Pump Warranty
Unist pumps are warrantied for life when used exclusively with Coolube®
Warranty details

Options

Continuous or shot spray
Continuous or shot spray Choose between a consistent spray or individual shots of lubrication
Advanced control
Advanced control

Pumps can be actuated individually, grouped, or remotely

Actuation
Actuation

Actuate the system with air pilot, solenoid, or manual valve

Pump timers
Pump timers

Control pump cycles per minute with a pneumatic pulse generator or electronic pump timer

Performance monitoring
Performance monitoring

Monitor fluid output with flow sensors

Nozzles
Nozzles Unist has a wide variety of MQL nozzle types to fit each specific application
Explore nozzles
Reservoir sizes
Reservoir sizes Multiple fluid supply options, including gravity reservoirs and pressurized tanks. Add an optional low-level sensor for peace of mind
Enclosure lock
Enclosure lock Optional tamper-proof keyed lock
Enclosures
Enclosures

Multiple enclosure sizes to keep components clean and protected

Related Products

Coolube®
Coolube®
Advanced metal cutting lubricant
Minimum Quantity Lubrication Nozzles
Minimum Quantity Lubrication Nozzles
Spray nozzles for MQL applications
Uni-Max® ST
Uni-Max® ST
1-2 output, continuous or shot spray lubrication.
Find the right lubrication solution for you
Want to read more?
View Technical Information

Dimensions

Specifications

Pump output and cycle rate
▪ 20µl: 780 mL/hr, 650 cycles/min*
▪ 40µl: 1500 mL/hr, 650 cycles/min*
▪ 60µl: 1900 mL/hr, 540 cycles/min*
Flow sensor NPN sensor, 5-28VDC
Pump timer (pneumatic pulse generator)
▪ Recommended: 5-50 pulses/minute
▪ Maximum: 200 pulses/minute (not recommended for continuous operation)
Pump timer (electronic Pulse R™)
▪ Recommended 5-50 Cycles per minute (Modes 1 & 2 on the Pulse R™)
▪ Maximum: 250 cycles/minute
Air flow rate 0-4.7 SCFM (0-131 LPM) for each air and oil output. 1-2 SCFM (28-56 LPM) typical
Operating temperature 32°-122°F (0°-50°C)
Storage temperature 4°-158°F (-16°-70°C)
*Cycles per minute based on Coolube® 2210. Consult Unist for other fluid viscosities

Requirements

Fluid viscosity range Fluids between 30–5000 SUS, NGLI Grade 00 & Grade 000 greases
Supply air pressure Clean, dry compressed air, 80-100 psi (4-7 bar), 25 SCFM (708 LPM) MIN
Supply fluid pressure For systems with a pressurized fluid supply: 15 psi (1 bar) MAX
Direct pump actuation on/off timer 0.030s minimum on time / 0.060s minimum off time*
