self fed blank stock lubricator

Uni-Roller® S2 Powered

Lubricate blank or sheet stock
Product Support
Overview
Technical
Support

Sample Request

✕

Step 1: Contact Info

Step 2: Sample Type

Step 3: Usage Info

Step 4: Shipping Info

Note: Currently, we can only ship samples to Canada, Mexico, or the United States.

25%

Consistent fluid application for blank stock

Using a powered roller feed, the Uni-Roller® S2 Powered applies consistent and even lubrication to one or both sides of blank stock. Use the Uni-Roller® S2 Powered to feed your blanks when other means of material draw are unavailable.



Built to fit your application, a single roller set is used for widths of 18” [457.2 mm] or less where the lower roller is directly driven. For blanks over 18” [457.2 mm] wide, multiple 12” [304.8 mm] wide roller sets are staggered and overlapped. Each lower roller is driven by a heavy-duty chain from a central shaft.

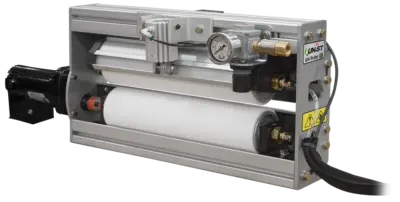

Uni-Roller® S2 Powered
Uni-Roller® S2 Powered

Uni-Roller® S2 Powered Benefits

Reduce fluid consumption by 50–90%
Reduce fluid consumption by 50–90%
Smooth and consistent coating on one or both sides of the stock
Smooth and consistent coating on one or both sides of the stock
Eliminate messy floors
Eliminate messy floors
<1 year average ROI
<1 year average ROI
30% longer between die maintenance
30% longer between die maintenance
Decrease scrap rates
Decrease scrap rates

Typical Applications

Features

unist smooth stock coating

Internally-fed fluid

Ensures even and consistent coating on one or both sides of stock

uni-roller change rollers

Quick change rollers

Roller cover replacements take minutes to swap in

uni-roller s2 powered feed

Power feed

DC gear motor for powered blank feed

powered blank lubrication actuation

Photo eye sensor

Photo sensors detects blanks for fluid actuation

uni-roller industrial design

Rugged aluminum and steel construction

Designed to withstand the harshest industrial conditions

Options

Roller covers
Roller covers Choose from polyurethane foam or polyester felt roller covers
Dispenser tube
Dispenser tube Choose between a low volume or standard dispenser tube
AC variable frequency drive
AC variable frequency drive Automated speed control for speeds up to 150 ft/min [46 m/min]. Not available on single roller units
Variable speed DC drive
Variable speed DC drive Manual speed control through a potentiometer for speeds up to 145 ft/min [44 m/min]
Fluid supply systems
Fluid supply systems

Stock applicators require a pressurized fluid supply. We offer a range of options for size and configuration.

See options

Powered roller cart
Powered roller cart

Mobile station for lubricating blank stock

Related Products

Powered Roller Cart™
Powered Roller Cart™
Portable blank/sheet lubricator
SmartFlow®
SmartFlow®
Take full control of die and stock lubrication
Uni-Blend™
Uni-Blend™
Accurate and repeatable fluid proportioning, mixing and supply
Uni-Roller® S2
Uni-Roller® S2
Lubricate coil stock
Uni-Roller® S2 HG
Uni-Roller® S2 HG
Lubricate heavy gauge coil stock
Fluid Supply Systems
Fluid Supply Systems
Consistent supply of fluid
Find the right stock lubrication solution for you!
Want to read more?
View Technical Information

Dimensions

Single r oller set M ultiple r oller sets

Specifications

Stock type Blank
Stock thickness 0.005”-.25” (.13mm – 6.35mm)
Stock width
▪ 3" - 69.5" (76mm - 1765mm)
▪ Contact us for other sizes
Line Speed Up to 150 ft/min (46 m/min)
Fluid type For use with a broad range of water soluble and neat lubricants. Viscosity from 30 – 1000 SUS. Thicker lubricants can be tested by Unist for compatibility
Fluid supply
▪ Pressurized 4 gal (15L)
▪ Pressurized 6 gal (22.7L)
▪ Pressurized 15 gal (56.8L)
▪ Pressurized 30 gal (113.6L)
▪ 20 gal (75.7L) polyethylene tank with diaphragm pump
▪ Integration into customer’s bulk fluid system
Applicator material Polyester felt or polyurethane foam
Controller Smartflow® or Duo™ programmable fluid controller
Mounting 5/16-18 t-nuts supplied in bottom extrusion slots allow for multiple mounting options. 2 t-nuts per slot provided.

Requirements

Air Clean, dry, compressed air, 80-100 psi (5.5-6.9 bar),10 SCFM (280 SLPM) minimum
Power supply
▪ Single Roller Systems: Gear Motor 1/20 HP DC - AC Input - 115V/230V 1.2A w/ 2A Fuse
▪ Multiple Roller Systems: Gear Motor 1/4 HP DC - AC Input - 115V/230V 5.6A w/ 8A Fuse
▪ Multiple Roller Systems w/VFD: Gear Motor 1/3 HP AC 3PH - AC Input - 230V 3PH 50/60 Hz 3.8A w/ 6A Fuse
Additional technical questions?

Speak directly with our experts about your specific needs

Get in touch
