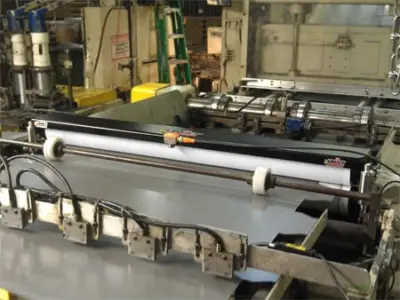

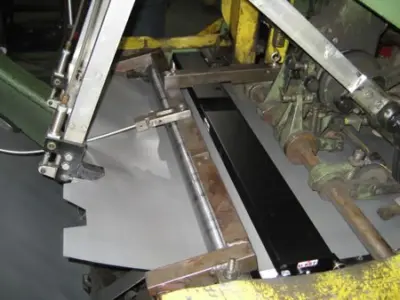

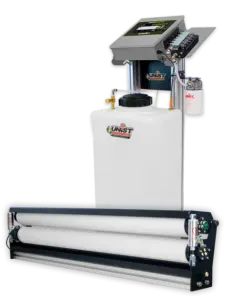

Originally designed for easy integration into multi-die lines, the Unist Sheet Lubrication System™ has found unparalleled success when implemented on various types of sheet-fed presses in can end-making applications. The amount of fluid applied by the SmartFlow® controller is completely programmable and the patented internally fed rollers provide a consistent coating across each sheet. The rollers are typically slave driven from the sheet feed system so they are synchronized with the rate of the press.
Sample Request
✕
Sheet Lubrication System™ Benefits
Active monitoring detects potential issues before they arise
100% worry-free installation & support
Smooth and consistent coating on one or both sides of the stock
Compatible with a wide variety of fluids
"Great installation service"
"Barry Dejong did a great job with the installation of your unist systems. He dug in with the guys and was enjoyable to work with. He spoke in layman’s terms and was easy to understand."
- Timothy Schultz, Maintenance and Training Supervisor, Ball Corporation
Full Testimonial
Typical Applications
Features
Full feature monitoring
The SmartFlow® provides full-featured monitoring of critical parameters such as fluid level, pressure and flow
Fluid Tracking
Directly measure how much fluid your process is consuming with advanced fluid tracking. Work smarter and know your exact lubricant cost per part
Easily Create Jobs
The job setup wizard guides users through creating a job. Once created, simply increase or decrease the amount of lubricant desired for quick fine tuning of lubricant coatings.

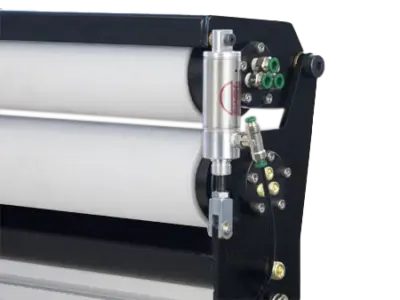

Internally-fed fluid
Ensures even and consistent coating on one or both sides of stock
Related Products
SmartFlow®
Take full control of die and stock lubrication
Uni-Roller® S2
Lubricate coil stock
Fluid Supply Systems
Consistent supply of fluid
Find the right lubrication solution for you
Want to read more?
View Technical Information
Specifications
| Stock type | Aluminum sheet stock |
| Stock thickness | .002" - 0.10" (.05mm - .25mm) |
| Stock width | 36" - 39" (91cm - 99cm) |
| Applicator material | Polyester felt |
| Fluid supply/capacity | 20 gal (75.7L) polyethylene tank with diaphragm pump |
| Interface | Touch screen interface |
| Fluid outputs | Max 22 |
| Control inputs | 2 (dry contact/switch closure, prox sensor 10-30 VDC NPN, N.O.) |
| Alarm inputs | 2 (dry contact/switch closure, prox sensor 10-30 VDC NPN, N.O.) |
| Outputs | 22 max at power supply voltage. Max power 10 watts/output |
| Alarm relay | Isolated, non-fused single pole, double throw; 2 amp load max |
| Max input rate | 50 cycles/sec at 50% duty cycle. Minimum contact open or closed time: 10 milliseconds |
| Programmable ranges |
▪ Count (CNT): 0-255 counts
▪ Delay (DEL): 0-100 secs (.010 second increments)
▪ Duration (DUR): 0-100 seconds (.010 second increments)
|
| Fuses | Supply: 2 amp, Output: 5 amp |
| Operating temperature range | 0° to +50°C (+32° to +122°F) |
| Storage temperature range | -20° to +70°C (-4° to +158°F) |
| Job storage | Max 250 setups/jobs |
Requirements
| Fluid type(s) |
▪ For use with vanishing fluid or low viscosity oil (oils from 30 SUS to 150 SUS)
▪ Not designed for use with water soluble lubricants
|
| Air supply | Clean, dry, compressed air, 80-90 psi (5.5 - 6.2 bar). 25 SCFM (708 SLPM) minimum |
| Power | 120VAC - 50/60hz or 240VAC - 50/60hz 9.5 amps |
